An R Package to generate data on tree architecture from terrestrial lidar scans
tReeTraits helps quantify tree architecture, especially
traits relevant to windfirmness (e.g., crown area, volume, stem taper,
branch size distribution), from individually segmented trees in
terrestrial lidar datasets.
It combines functionality from multiple tools including TreeQSM, PyTLidar, lidR, spanner, and follows methods described in Cannon et al. (in prep).
This package depends on CRAN and GitHub packages:
install.packages("lidR")
install.packages("remotes") # For GitHub installation
# Install tReeTraits itself
install.packages("tReetraits") #latest CRAN release
devtools::install_github("jbcannon/tReeTraits") #development versionTo use the TreeQSM functionality, you must have a conda environment
named r-reticulate-pytlidar, running Python
3.11 with the PyTLidar package and its
dependencies installed. This is handled automatically by the
setup_pytlidar() function which must be run once on each
new machine. Once installed the environment is automatically detected
when the package is loaded.
To enable TreeQSM functionality, run:
setup_pytlidar()This installs miniconda if needed, creates a dedicated Python environment, and installs PyTLidar and required dependencies.
The environment is automatically checked with each call to the
run_treeqsm function. If the environment is missing, you
will be prompted to run setup_pytlidar().
library(tReeTraits)
library(lidR)
# load example data
las_filename = system.file("extdata", "tree_0744.laz", package = "tReeTraits")
#las_filename = "C:/path/to/data/myfile.las" #or your own data
las <- readLAS(las_filename)
# Clean and preprocess: recenter, normalize, remove understory vegetation
las_clean <- clean_las(las, bole_height = 2)
# Plot tree from 3 angles
plot_tree(las_clean)

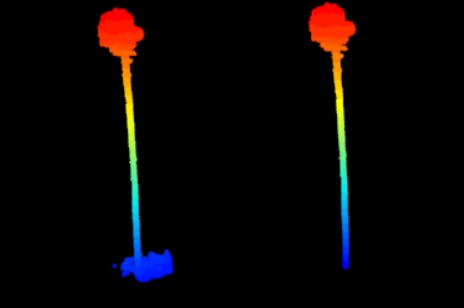

Pine tree with vegetation around bole removed.
height <- get_height(las_clean)
width <- get_width(las_clean)[1]
dbh <- get_dbh(las_clean, select_n = 30)
cbh <- get_crown_base(las_clean, threshold = 0.25, sustain = 2)# first detect crown points with `segment_crown()`
las_crown <- segment_crown(las_clean, crown_base_height = cbh)
# calculate crown size statistics
area_convex <- st_area(convex_hull_2D(las_crown))
area_voxel <- st_area(voxel_hull_2D(las_crown))
lacunarity <- get_lacunarity(las_crown)
volume_alpha <- get_crown_volume_alpha(las_crown)
volume_voxel <- get_crown_volume_voxel(las_crown)

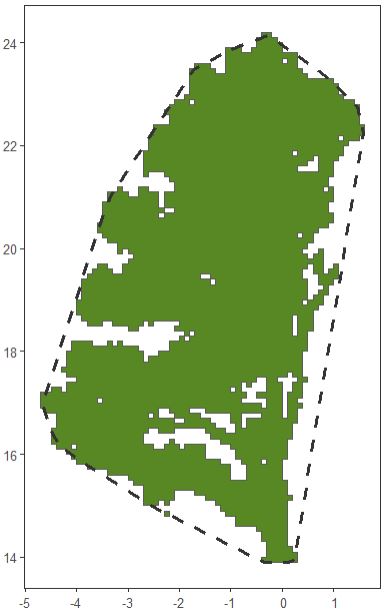

Illustration of convex hull (dashed line) and voxel hull (green feature) from example tree. The proportion of whitespace within the convex hull represents lacunarity (~20%)
This example shows how to generate a Quantitative Structure Model
(QSM) from a single-tree point cloud using TreeQSM via
tReeTraits.
library(tReeTraits)
# Creates and manages an isolated Python environment if needed
setup_pytlidar()
# Note that you may need to Restart R to complete installation
# Only need to run once per machine# Input file
file <- system.file("extdata", "tree_0744.laz", package = "tReeTraits")
tree_id <- tools::file_path_sans_ext(basename(file))Multiple parameter combinations can be supplied. TreeQSM optimizes across them
qsm_result <- run_treeqsm(
file = file,
intensity_threshold = 40000,
resolution = 0.02,
patch_diam1 = c(0.05, 0.1),
patch_diam2min = c(0.04, 0.05),
patch_diam2max = c(0.12, 0.14),
verbose = TRUE
)# View the parameters of the best model
params = qsm_result$qsm_pars
print(params)
# Plot the qsm in 2d or 3d (Note 3d drawing is slow)
qsm = qsm_result$qsm
plot_qsm2d(qsm, scale=40)
#plot_qsm3d(qsm)write_qsm(
qsm_result,
name = tree_id,
output_dir = tempdir()
)
These functions analyze tree geometry and volume from Quantitative Structure Models (QSMs), enabling detailed trait extraction and modeling.
qsm_file = system.file("extdata", "tree_0744_qsm.txt", package='tReeTraits')
qsm = load_qsm(qsm_file)Using the generated QSM, you can use the following functions for tree geometry traits
branch_volume_weighted_stats(qsm, breaks=NULL, FUN = mean)
Calculates volume-weighted branch diameter statistics using outputs from
branch_size_distribution().
get_primary_branches(qsm) Extracts primary branches
(branching order = 1 attached to trunk) from the QSM.
qsm_volume_distribution(qsm, terminus_diam_cm=4, segment_size=0.5)
Estimates tree volume and vertical distribution by separating trunk,
terminus (top trunk < terminus_diam_cm), and primary branches.
Returns diameters, heights, and volumes by section for further biomass
or mass-volume modeling.
fit_taper_Kozak(qsm, dbh, terminus_diam_cm=4, segment_size=0.25, plot=TRUE)
Fits Kozak’s taper equation to trunk segments, modeling diameter as a
function of relative height:
\[ d(h)/D = a_0 +a_1(h/H)+a_2(h/H)^2+a_3(h/H)^3 \]
Outputs model coefficients, R², RMSE, and an optional plot.
get_stem_sweep(qsm, terminus_diam_cm=4, plot=TRUE)
Computes tree sweep by measuring deviations of trunk points from a
straight idealized line between the top and bottom QSM trunk segments.
Returns sweep distances by height for quantifying stem curvature.
Optionally plots sweep vs. height.
get_stem_tilt(qsm, terminus_diam_cm=4) Calculates
overall stem tilt as the angle between the straight line connecting the
lowest and highest trunk points and the vertical axis. Outputs tilt
angle in degrees, quantifying tree lean.
This section provides functions to generate diagnostic plots that help visualize tree point clouds, QSMs, and related metrics to identify potential errors or assess data quality.
Creates a 3-panel plot showing two vertical profiles (X-Z and Y-Z) and an overhead (X-Y) view of the tree crown point cloud. Useful for spotting stray points or segmentation errors.
plot_tree(las, res = 0.05, plot = TRUE)

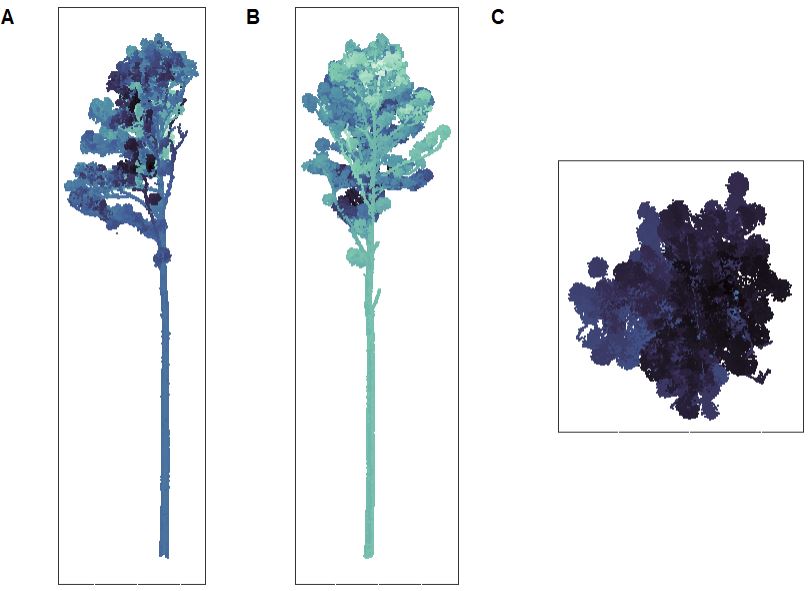

Figure illustrating 3 views of tree_0129
Displays a simple base R plot of the QSM colored by branching order, optionally showing two rotated views.
qsm_file = system.file("extdata", "tree_0744_qsm.txt", package='tReeTraits')
qsm = load_qsm(qsm_file)
plot_qsm2d(qsm)
plot_qsm3d(qsm)

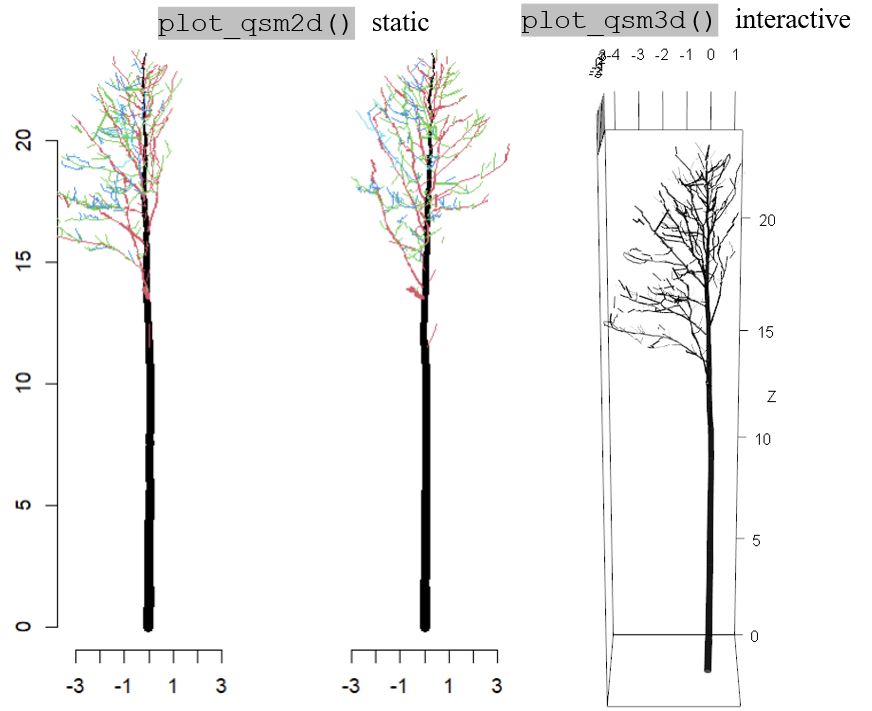

plot_qsm2d() and plot_qsm3d() output for
tree-0744
Visualizes basic tree measurements (height, crown base height, crown width, DBH) overlaid on a voxel-thinned point cloud.
las_file = system.file("extdata", "tree_0744.laz", package="tReeTraits")
las = lidR::readLAS(las_file)
las = clean_las(las)
basics_diagnostic_plot(las, height=24.1, cbh=13.9, crown_width=2.29, dbh=0.329, res = 0.1)

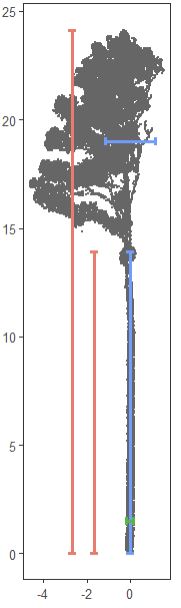

basics_diagnostic_plot() output for tree-0129
hull_diagnostic_plot(las, res = 0.1)taper_diagnostic_plot(qsm, dbh)branch_distribution_plot(qsm)full_diagnostic_plot(las, qsm, height, cbh, crown_width, dbh, res = 0.1)The treeTraits package is associated with Cannon et
al. (in press) XXXX. Please return at a later date for a full
